Product Description

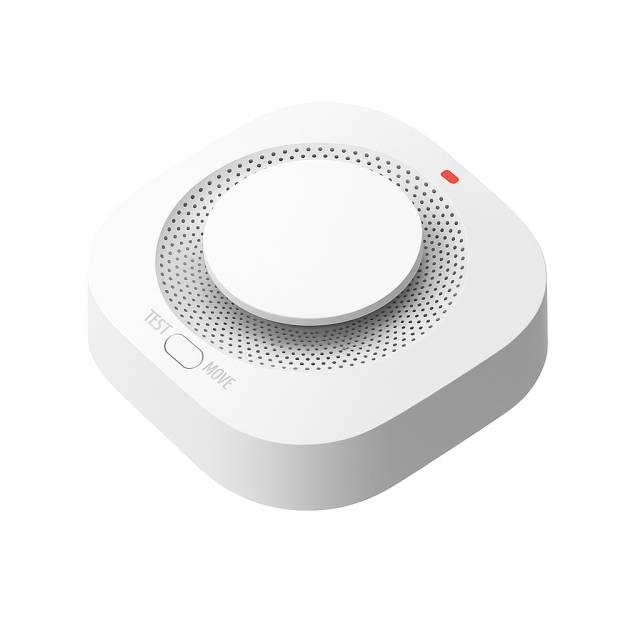

This wireless smoke alarm combines a photoelectric smoke detection chamber with a Wi-Fi networking module to provide both local and remote fire warning. When smoke from a smouldering or open-flame fire enters the sensing chamber and reaches the alarm threshold, the detector activates an audible and visual alarm (>85 dB buzzer and red LED) and simultaneously sends alarm information to the mobile phone APP through Wi-Fi.
The unit uses 2 × AA 1.5 V batteries as its only power source, so there is no need for external wiring. Ultra-low standby current (<20 μA) ensures long battery life, while continuous self-monitoring supports smoke alarm, low-voltage indication and fault alarm. With a compact 90 × 40 mm housing and 60 mm mounting hole spacing, the detector is easy to install on ceilings in rooms up to 20 m² with ceiling height below 6 m.
Designed for schools, hospitals, commercial residences, hotels, restaurants, nursing homes, welfare institutions, museums and other public places, this Wi-Fi smoke alarm allows users to monitor fire events through the APP anytime and anywhere. It complies with EN14604-2005, making it suitable for projects that require European standard smoke alarms.
Key Features
Wi-Fi wireless smoke alarm with mobile APP push notification
Photoelectric sensing technology for smouldering and flaming fires
Battery powered: 2 × AA 1.5 V (DC 3 V) – no wiring required
Ultra-low standby current < 20 μA, alarm current < 100 mA
Local audible and visual alarm: >85 dB @ 3 m with red LED indicator
Multi-status indication: normal, alarm, low voltage
Operation band 2.4 GHz, wireless standard IEEE802.11 b/g/n
Compact ABS white housing, ceiling mount, 60 mm installation hole distance
Recommended protection area: 20 m², ceiling height ≤ 6 m
Operating temperature -10°C ~ +50°C, humidity ≤ 95% RH (40°C, non-frozen)
EN14604-2005 operation standard
Technical Specifications
| Item | Specification |
|---|---|
| Power Supply | 2 × AA 1.5 V battery (DC 3 V) |
| Standby Current | < 20 μA |
| Alarm Current | < 100 mA |
| Low Voltage Threshold | 2.5 V ± 0.1 V |
| Alarm Volume | > 85 dB @ 3 m |
| Smoke Alarm Indicator | Normal / alarm / low voltage (red LED) |
| Operating Band | 2.4 GHz |
| Wireless Standard | IEEE 802.11 b/g/n |
| Installation Hole Distance | 60 mm |
| Housing Material | ABS, white |
| Working Temperature | -10°C ~ +50°C |
| Working Humidity | ≤ 95% RH (40°C, non-frozen) |
| Product Weight | About 120 g (including batteries) |
| Product Size | 90 × 40 mm (including installation board) |
| Operation Standard | EN14604-2005 |
| Recommended Coverage | 20 m², ceiling height < 6 m |
Applications
Residential houses and apartments
Schools, nurseries and educational buildings
Hospitals, clinics and nursing homes
Hotels, hostels, clubs and guest houses
Restaurants, cafés and commercial kitchens (clean air areas)
Offices, shops, commercial residences and welfare institutions
Museums and public buildings where remote monitoring is required
